If you're looking for an efficient way to control the pressure levels of your air compressor, a pressure switch is exactly what you need. These switches automatically turn the compressor on and off, adjusting the pressure levels according to your specific needs. But with so many options on the market, it can be difficult to determine which one is the best fit for your requirements. Here are some factors to consider before making your purchase.
Firstly, ensure that the switch is compatible with your air compressor model and the pressure range you require. Additionally, check for features such as adjustable pressure levels, durability, reliability and ease of use. Consider the maximum electrical ratings the switch supports and whether it's able to support the amperage of your compressor's motor. And finally, make sure you understand how to install and program the switch properly.
If you're unsure where to start, here are some questions to consider before making your purchase. Are you using the compressor for hobby projects or for professional use? What is your budget for the switch? Are you looking for additional features such as a manual on/off switch or an overload protection mechanism? And lastly, have you read any reviews or done research on the brand and model you're interested in? Answering these questions will help guide you towards the best air compressor pressure switch for your needs.
10 Best Air Compressor Pressure Switch
It is ideal for controlling air compressor pressure within a range of 135-175 psi using four ports and a 26 amp rating.
Ideal for controlling the pressure of air compressors, turning them on and off as needed.
It is ideal for controlling air compressor pressure within a range of 95-125 PSI with 4 port connections and an unloader.
Ideal for controlling the pressure in a single phase compressor.
This product is ideal for controlling air compressor pressure with a set off pressure of 150 psi and fixed differential of 30 psi.
The product is ideal for controlling air compressor pressure in Craftsman machines with a PSI range of 145-175.
This product is ideal for controlling air pressure in an air compressor with a maximum pressure of 175 psi.
The product is ideal for controlling air pressure in air compressors, train horns, and other related equipment.
Ideal for controlling air compressor pressure, with a 125 psi set off and 30 psi fixed differential.
The product is ideal for use in an air compressor system to regulate pressure and activate the compressor.
1. Heavy Duty Pressure Switch For Air Compressor 135-175 Psi Four 4 Port 26 Amp By Lefoo
Introducing a universal replacement that promises to deliver exceptional performance and durability. This heavy-duty product is designed to withstand even the toughest of conditions, making it an ideal choice for those who demand nothing but the best.
With a factory preset of 135-175 psi, this replacement is capable of meeting the most demanding of requirements. Its heavy-duty 26A rating ensures that it can handle even the most challenging applications with ease, making it a reliable choice for professionals and DIY enthusiasts alike.
In addition to its impressive performance, this product is also built to last. Its corrosion-resistant and non-metallic cover ensures that it will remain in top condition for years to come, even in harsh environments where other products may fail.
If you have any questions about this replacement, our team of experts is always here to help. Simply reach out to us through Amazon and we'll be happy to assist you in any way we can.
2. Campbell-Hausfeld Cw209300av Pressure Switch For Air Compressors
If you're looking for a reliable replacement part for your Campbell Hausfeld Air Compressor, look no further than this Authentic Campbell Hausfeld Replacement Part. Designed to fit seamlessly into a variety of Campbell Hausfeld Air Compressor models, this part replaces the obsolete part number CW209300AJ and is built to last.
Crafted from high-quality materials, this standard duty replacement part is built strong for longer life. Its durability and dependability make it an excellent choice for those who rely on their Campbell Hausfeld Air Compressor for their work or hobbies.
With its easy installation process and compatibility with multiple models, this replacement part is a great investment for those looking to keep their Campbell Hausfeld Air Compressor running smoothly. Trust in the authenticity and quality of this Campbell Hausfeld replacement part.
3. Lefoo Air Pressure Switch With Unloader – 95-125 Psi
The LeFoo Pressure Switch is an essential tool that ensures your air compressor operates efficiently. With a pressure range of 95 to 125 PSI, this switch is designed to regulate air pressure and prevent overloading.
This switch features four ports, each measuring 1/4-inch NPT (Female). These ports are strategically placed to allow easy installation and maintenance. Additionally, the four ports ensure that the switch is compatible with a wide range of air compressors.
One of the impressive features of this switch is that all unused connection ports can easily be plugged. This feature ensures that you only use the ports that are necessary, making your installation neater and more organized.
The LeFoo Pressure Switch is designed with durability in mind, ensuring that it can withstand the demands of regular usage. Its excellent construction ensures that it can resist wear and tear, making it a reliable tool that will serve you for years.
4. Ingersoll Rand 23474653 Pressure Switch For Single Phase Compressor
The 5 HP single phase Ingersoll Rand reciprocating air compressor models such as the 2340 and TS4, can now be paired with an efficient pressure switch to enhance their performance. The pressure switch has a 135 psig cut-in and 175 psig cut-out, ensuring that the compressor operates optimally. Additionally, the switch comes equipped with an unloader valve and a NEMA 1 type enclosure that provides secure protection.
The pressure switch also includes a Shut Off Switch on the Side of the Pressure Switch that makes it convenient to control the air compressor. However, to ensure a seamless installation, it is highly recommended to use Teflon Tape. For further guidance, customers can review the installation video or contact the Air Tech team at 800-247-7378 for assistance.

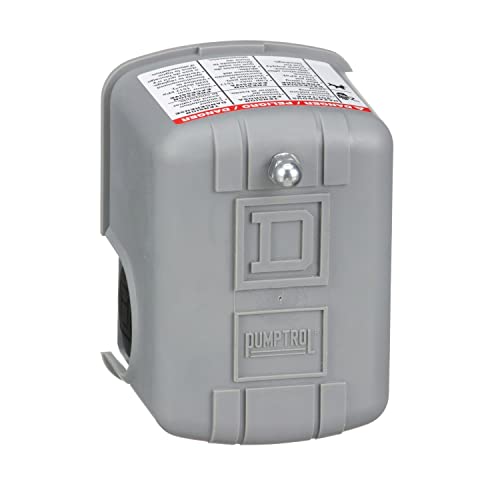

5. Air Pressure Switch With Precision Control
The Pressure Switch for Water or Air is an essential tool for controlling electrically driven motors in a variety of applications. This switch is designed to regulate the pressure of either water or air, making it a versatile addition to any system. The switch is diaphragm actuated, which ensures accurate and reliable performance, even in harsh environments.
The Pressure Switch is incredibly easy to install and use. It can be connected to an electrical source and the motor, and the pressure settings can be adjusted using the clear and easy-to-read gauge. Once the desired pressure is set, the switch will automatically turn the motor on or off, depending on the pressure level detected.
The Pressure Switch also features a 2-way pressure release valve, which allows for quick and safe pressure release in case of emergency. This feature makes the switch an ideal choice for applications where safety is a top priority.
The switch is built to last, with durable materials and a robust design that can handle even the toughest conditions. It is also designed to be low maintenance, meaning that it will provide reliable performance for years to come.
6. Xiaowei 5140112-24 Air Compressor Pressure Switch For Craftsman 175/145 Psi 1wc95 1wc95 919-16777
Looking for a reliable replacement part for your air compressor? Look no further than the 5140112-24, which is compatible with a range of models, including the CPFC2TV3525VP Type 1 & 2, 919-16771, 919-167780, 919-167781, 919-725500, 919-728500, and 919-728501, as well as the 1WC95-0 and 1WC95-1.
With an adjustable pressure setting ranging from 145-175 PSI, this replacement part is designed to help you get the job done with ease and precision. And with its 4-port, 24amp, 120V/240 two-pole switch, you can rest assured that you're getting a high-quality, dependable product that will stand up to even the toughest conditions.
So why wait? Order your replacement part today and get back to work with confidence!

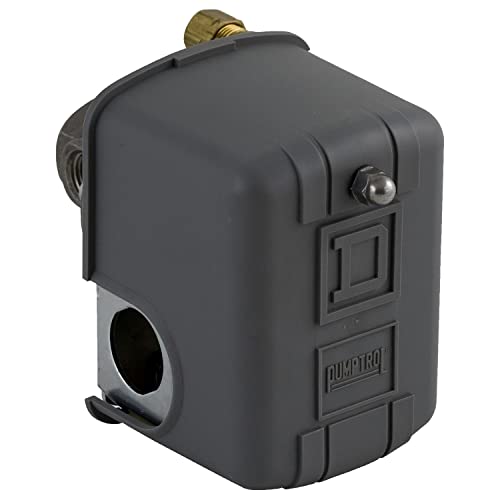

7. Schneider Air-Compressor Pressure Switch: Original Version.
The Pressure Switch for Water or Air is an essential tool to control electrically driven motors with ease. This switch is diaphragm actuated, which means it uses a flexible membrane to sense changes in pressure and trigger the switch. The switch is designed to work with both water and air pressure systems, making it a versatile option for a wide range of applications.
One of the standout features of this pressure switch is the inclusion of a 2-way pressure release valve. This valve helps to regulate the pressure and prevent damage to the motor or other components in the system. The pressure release valve ensures that any excess pressure is safely vented, providing added protection and peace of mind.
The switch is made with high-quality materials and is built to last. It is designed to withstand the harsh conditions of industrial environments and is suitable for use in a variety of settings. The switch is easy to install and can be used with a range of different motor types, making it a versatile option for those who need to control their motors with precision and accuracy.
8. Tank Mount Air Pressure Switch For Horns.
Introducing the Horn Compressor Air Pressure Switch, a versatile accessory that is perfect for various applications. With a 1/4-18 NPT male thread and a tank mount type, this switch is a great fit for air horns, train horns, air compressors, and oil tank pressure switches.
The package includes one Horn Compressor Air Pressure Switch that is suitable for both AC and DC power. It can work with 110V/120V/240V AC or 12V/24V DC, with a maximum current supported of 20Amp.
This switch is designed to turn on the air compressor at 135 PSI and turn it off at 175 PSI, with a tolerance of +/- 5%. This will ensure that your air compressor is working efficiently and effectively.
The Horn Compressor Air Pressure Switch is easy to install and can be used in 12V or 24V applications. It is a reliable and convenient accessory that will help you get the most out of your air compressor.
9. Airboss Pressure Switch – 125 Psi
The Pressure Switch for Water or Air is a highly efficient and reliable device that is specifically designed to control electrically driven motors. It features a diaphragm actuated mechanism that ensures accurate and precise control of pressure levels. This pressure switch is compatible with both air and water applications, making it a versatile option for a wide range of applications.
The Pressure Switch is designed to deliver optimal performance in a variety of settings. Its diaphragm actuated mechanism ensures that it can accurately and reliably control the pressure levels of electrically driven motors. This makes it an ideal choice for applications that require precise pressure control for optimal operation and performance.
In addition to its advanced control capabilities, the Pressure Switch also includes a 2-way pressure release valve. This valve is designed to ensure the safe and efficient release of pressure whenever necessary, providing an extra level of safety and reliability to the device.
The Pressure Switch is also designed with durability and longevity in mind. Its high-quality construction materials ensure that it can withstand even the most demanding applications, providing reliable and consistent performance for years to come. Its compact and lightweight design also makes it easy to install and operate, making it a convenient and user-friendly option for a wide range of applications.
10. Furnas Air Compressor Pressure Switch – Essential Accessory
Introducing the brand new Furnas/Hubbell Pressure switch 95-125 single port with unloader! This top-of-the-line pressure switch is an essential component for any air compressor system, ensuring efficient and reliable performance.
With a factory set range of 95-125 psi, this pressure switch is designed to provide the optimal pressure for your compressor system. The single port design makes installation easy and hassle-free, while the built-in unloader ensures smooth and efficient operation.
This high-quality pressure switch is built to last, with durable construction that can withstand even the toughest conditions. And with free shipping included, you can enjoy the convenience of having this essential component delivered right to your doorstep.
Whether you're a professional mechanic or a DIY enthusiast, the Furnas/Hubbell Pressure switch 95-125 single port with unloader is the perfect choice for ensuring optimal performance and efficiency from your air compressor system. Don't settle for anything less than the best – order yours today!
Best Air Compressor Pressure Switch FAQs
Can an air compressor pressure switch be adjusted to suit different pressure requirements?
Yes, an air compressor pressure switch can be adjusted to suit different pressure requirements. Most pressure switches come with a factory preset pressure setting, but they can be adjusted to suit the specific needs of the user. To adjust the pressure switch, first, turn off the power supply to the compressor and remove the cover from the pressure switch. Locate the adjustment screws, which are usually labeled as "cut-in" and "cut-out."
The "cut-in" screw is used to adjust the minimum pressure at which the compressor turns on, while the "cut-out" screw is used to adjust the maximum pressure at which the compressor turns off. To adjust the pressure, use a screwdriver to turn the adjustment screws clockwise to increase pressure or counterclockwise to decrease pressure.
It is important to note that the pressure switch should be adjusted gradually and carefully to avoid damage to the compressor or injury to the user. It is also recommended to consult the user manual or seek professional assistance if unsure about the adjustment process.
How do you install and maintain an air compressor pressure switch?
Installing and maintaining an air compressor pressure switch requires a few steps to ensure proper functioning and longevity. Firstly, before installation, ensure that the air compressor is turned off and unplugged from the power source. Next, remove the existing pressure switch by disconnecting the wires and unscrewing it from the compressor. Install the new pressure switch by screwing it into place, connecting the wires, and adjusting the pressure settings according to the manufacturer's instructions.
To maintain the pressure switch, periodically check the wiring connections to ensure they are tight and secure. Also, check the pressure settings and adjust them as needed to avoid overloading the compressor. It is also essential to keep the switch clean by wiping it down with a damp cloth and avoiding the use of harsh chemicals.
Regular maintenance of the air compressor itself, such as changing the oil and filters, can also help prolong the life of the pressure switch. If the pressure switch begins to malfunction or fails, it is recommended to replace it promptly to avoid damage to the compressor or other components.
How do you know if your air compressor pressure switch is faulty or needs replacement?
The air compressor pressure switch is responsible for turning the compressor on and off, maintaining the correct air pressure in the tank. If the switch is faulty or needs replacement, you may notice a few signs. Firstly, if the compressor fails to turn on or off automatically, this could be a sign of a faulty pressure switch. Secondly, if the compressor is not building pressure or is building pressure slowly, this could also be a sign of a faulty pressure switch. Additionally, if the compressor is over-pressurizing the tank, this could be another sign of a faulty pressure switch.
One way to test if the pressure switch is faulty is to use a multimeter to measure the continuity of the switch. If there is no continuity, then the switch needs to be replaced. It is important to note that if you are not confident in testing the pressure switch yourself, it is best to seek the help of a professional. Regular inspection and maintenance of the air compressor can help prevent instances of a faulty or damaged pressure switch.
How does a pressure switch work in an air compressor system?
A pressure switch in an air compressor system is a device that automatically controls the on/off cycle of the compressor motor. It works by sensing the pressure in the air tank and turning the compressor on when the pressure drops below a certain level and off when the pressure reaches a predetermined level.
The pressure switch consists of a diaphragm and a set of electrical contacts. As the pressure in the tank drops, the diaphragm moves and activates the switch contacts, which start the compressor motor. When the pressure in the tank reaches the set level, the diaphragm moves back and the switch contacts turn off the motor.
Most pressure switches also have an adjustable pressure range that allows the user to set the pressure levels for the on/off cycle. This ensures that the compressor only operates when it needs to, which saves energy, reduces wear and tear on the compressor, and prolongs its lifespan.
In summary, a pressure switch is a critical component in an air compressor system that helps to regulate the air pressure in the tank and ensure that the compressor operates efficiently.
What are the common types of air compressor pressure switches available in the market?
Air compressor pressure switches are an essential component that controls the pressure level of the compressor and enables it to work efficiently. There are primarily two types of air compressor pressure switches available in the market:
1. Diaphragm Type Pressure Switches: They are the most common type of air compressor pressure switch available in the market. These switches use a flexible diaphragm that gets inflated or deflated with the change in air pressure. When the pressure reaches the desired level, the switch turns off the compressor, preventing it from overworking.
2. Piston Type Pressure Switches: These switches are less common and are mostly used in industrial settings. They use a piston mechanism that gets activated with the change in air pressure. When the pressure reaches the desired level, the piston moves and turns off the compressor, ensuring that it doesn't overwork.
It's essential to choose the right type of air compressor pressure switch based on your compressor's size and the application it's used for.
What are the key features to look for in the best air compressor pressure switch?
When looking for the best air compressor pressure switch, there are several key features to consider. Firstly, you need to consider the pressure range that the switch can handle. The pressure range should be suitable for your specific air compressor needs, and it should be able to regulate the pressure within that range accurately.
Another important feature to consider is the switch's durability and longevity. The switch should be made of high-quality materials that can withstand the rigors of regular use without breaking down.
You should also look for a pressure switch that has a clear and easy-to-read gauge so that you can easily monitor the pressure levels. Additionally, the switch should have adjustable settings that allow you to customize the pressure levels and cut-in/cut-out settings to your specific needs.
Finally, it is important to choose a pressure switch that is compatible with your air compressor system. There are many different types of pressure switches available, so be sure to choose one that is designed to work with your particular compressor model. Overall, these key features are important to consider when selecting the best air compressor pressure switch for your needs.
What are the safety measures to consider when working with an air compressor pressure switch?
When working with an air compressor pressure switch, it is important to follow certain safety measures to avoid any potential hazards. Firstly, ensure that the compressor is disconnected from any power source before working on the pressure switch. This will prevent any accidental start-ups or electrical shocks.
Next, make sure to wear appropriate personal protective equipment (PPE) such as safety glasses and gloves. This will protect your eyes and hands from any debris or sharp edges when removing or installing the pressure switch.
When handling the pressure switch, be gentle and avoid any sudden movements that may cause damage to the switch or any surrounding components.
It is also important to follow the manufacturer's instructions and guidelines for the specific pressure switch model being used. This will ensure that the switch is installed and operated correctly, reducing the risk of accidents or malfunctions.
Lastly, it is recommended to periodically inspect the pressure switch and surrounding components for any signs of wear or damage, and replace any faulty parts immediately. By following these safety measures, you can work with an air compressor pressure switch with confidence and minimize any potential risks.
What is the best air compressor pressure switch available in the market?
There are many high-quality air compressor pressure switches available in the market, and the best one for you will depend on your specific needs and preferences. Some of the top-rated air compressor pressure switches include the Square D by Schneider Electric, the Furnas Hubbell Pressure Switch, and the Condor USA MDR11 Pressure Switch. These switches are known for their accuracy, reliability, and durability, making them excellent choices for both professional and personal use. When selecting an air compressor pressure switch, it is important to consider factors such as the size and power of your compressor, the pressure range you require, and any additional features you may need. It is also a good idea to read product reviews and compare prices to ensure that you are getting the best value for your money.
What is the ideal pressure range for an air compressor pressure switch?
The ideal pressure range for an air compressor pressure switch can vary depending on the specific compressor and its intended application. However, in general, the pressure range for an air compressor pressure switch is typically between 100 and 175 PSI (pounds per square inch). This range allows the compressor to build up enough pressure to operate properly, while also providing a safety margin to prevent over-pressurization.
It is important to note that the pressure range may need to be adjusted based on the compressor's intended use and the tools or equipment being powered by the compressor. It is also important to regularly check and maintain the pressure switch to ensure it is functioning properly and within the appropriate range. If you are unsure about the ideal pressure range for your specific air compressor, consult the manufacturer's guidelines or seek the advice of a qualified professional.
What is the lifespan of an air compressor pressure switch and how often should it be replaced?
The lifespan of an air compressor pressure switch can vary depending on the quality of the switch and the frequency of use. Generally, a good quality pressure switch can last up to 10 years or more. However, if the switch is subjected to frequent use or harsh conditions, its lifespan may be reduced.
To ensure the proper functioning of your air compressor, it is recommended to replace the pressure switch every 5-7 years as a preventive measure. Additionally, if you notice any signs of wear, such as inconsistent pressure readings or difficulty in maintaining pressure, it is advisable to replace the switch immediately.
Regular maintenance and inspection of the pressure switch can also help to extend its lifespan. This includes checking for leaks, adjusting the cut-in and cut-out pressures, and ensuring the switch is properly calibrated. By taking these measures, you can ensure your air compressor operates efficiently and safely.
